About cellenONE® X1 Neo

cellenONE® is an all-in-one platform combining high-accuracy single cell isolation and high-precision pico to nanoliter reagent dispensing.

Image-based single cell sorting and isolation

Cell line development with excellent clonal outgrowth

Miniaturized end-to-end single cell sample preparation workflows

Key features

Slider Section Remaining

Benefits

Accuracy

Up to 100% single cell accuracy (no doublet, no debris, no empty well)

Image-Based Technology
  • Live imaging of cell sample content (e.g. diameter, elongation)
  • User-defined sorting parameters (morphology and/or fluorescence based)
  • Image-based QC for every isolated cell
Miniaturized
  • High-precision pico to nanoliter reagent dispensing
  • On-deck temperature, humidity and dew-point control
Versatility
  • Any cell type (from 0.5 to ~80 μm)
  • Any sample size (from ~ 3 μL)
  • Any standard (i.e. 96, 384, 1536
    well plates, glass slides, etc.) or custom
    labware
Viability
  • Ultra gentle acoustic-based dispensing technology
  • On-deck sample temperature control for improved cell viability (NEW)
Automation
  • Improved drop generation system (NEW)
  • Automated end-to-end run creation and error handling (NEW)
  • Fast temperature ramping up and down (4 to 85°C) for efficient sample incubation (NEW)
Ideal for Rare Cells
  • Compatible with samples containing very few cells (e.g. micro-biopsies, CSF fluid)
  • Compatible with very low sample volume (from ~ 3 μL)
  • Maximized cell recovery (non-isolated cells are collected for further
    reprocessing)
Time and Cost Savings
  • 96 cells isolated in less than 3 minutes
  • Workflow miniaturization, reducing reagent costs
  • Workflow automation, reducing operator time

New Features

While cellenONE X1 is now recognized as the gold standard in flexible single cell platforms, with about 200 instruments installed globally, the new version, cellenONE X1 Neo, is even better, offering enhanced features and performance to meet your evolving needs.

  • New heating / cooling system
      • Better temperature control
      • Faster ramping up and down
      • Improved control of the incubation steps
  • New optical system for increased fluorescence sensitivity
  • Improved drop generation system for enhanced droplet stability
  • Faster instrument start-up time
  • New sample holder
      • Allowing sample cooling
      • New labware format (i.e. Thermo Scientific™ Piko PCR Plate 24-well , Piko PCR Plate 96-well, and 8-tube strips)
  • Application-dedicated software packages (e.g. proteomics, cloning, microbiology etc.)
  • Improved user experience
  • Automation of end-to-end sample preparation workflows

cellenONE X1 Neo is the turnkey solution for your single cell workflow: get the Material, the Methods and the Know-how!

Applications

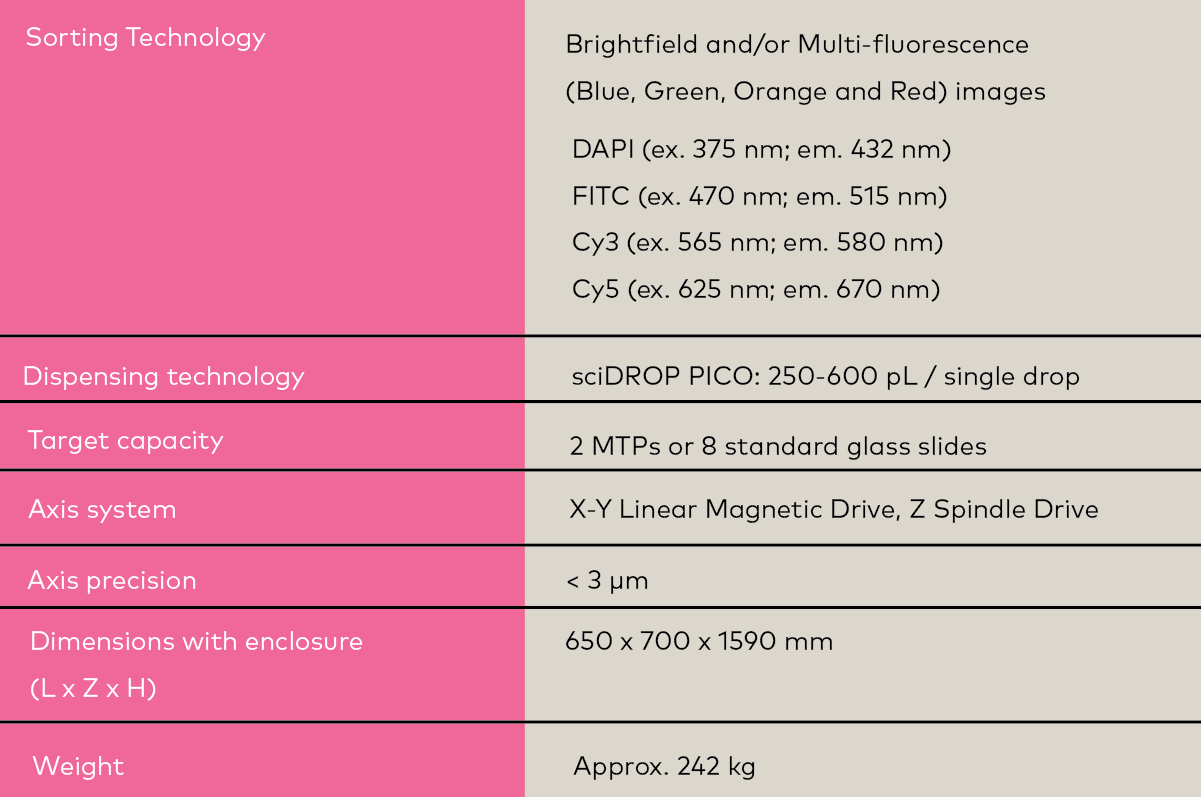

Product Specifications

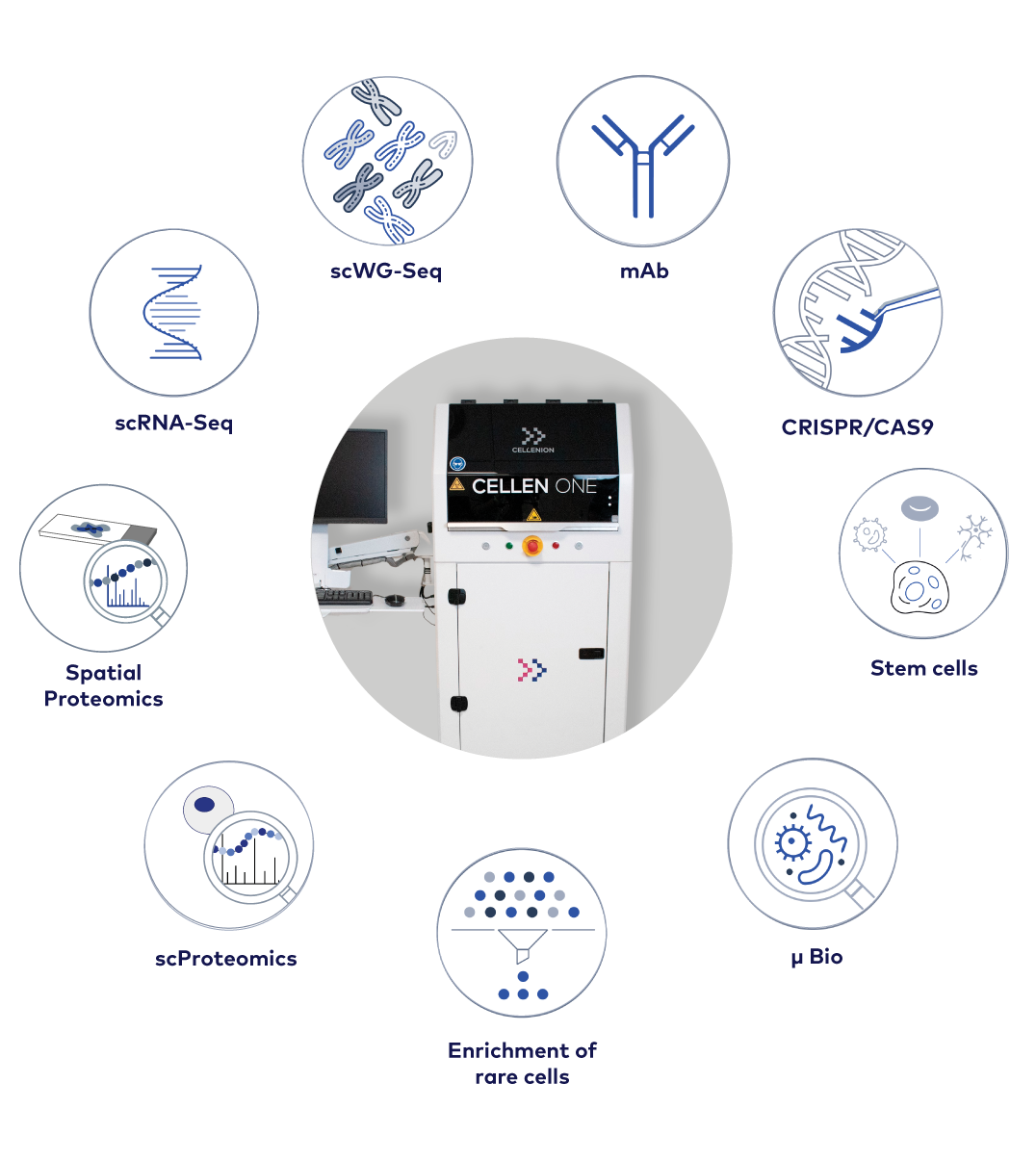

One Technology, So Many Applications

If you would like to learn more about all applications of the cellenONE X1 Neo, and discuss your specific application needs, reach out to us!

Discover our consumable product range for single cell proteomics, fully compatible with cellenONE X1 Neo



Want to unleash fully-automated cell line development workflows, check out our cellenONE HT instrument

Selected Application Notes
