cellenONE®

The open platform combining the most accurate and flexible technology for single cell isolation with precision nanoliter dispensing

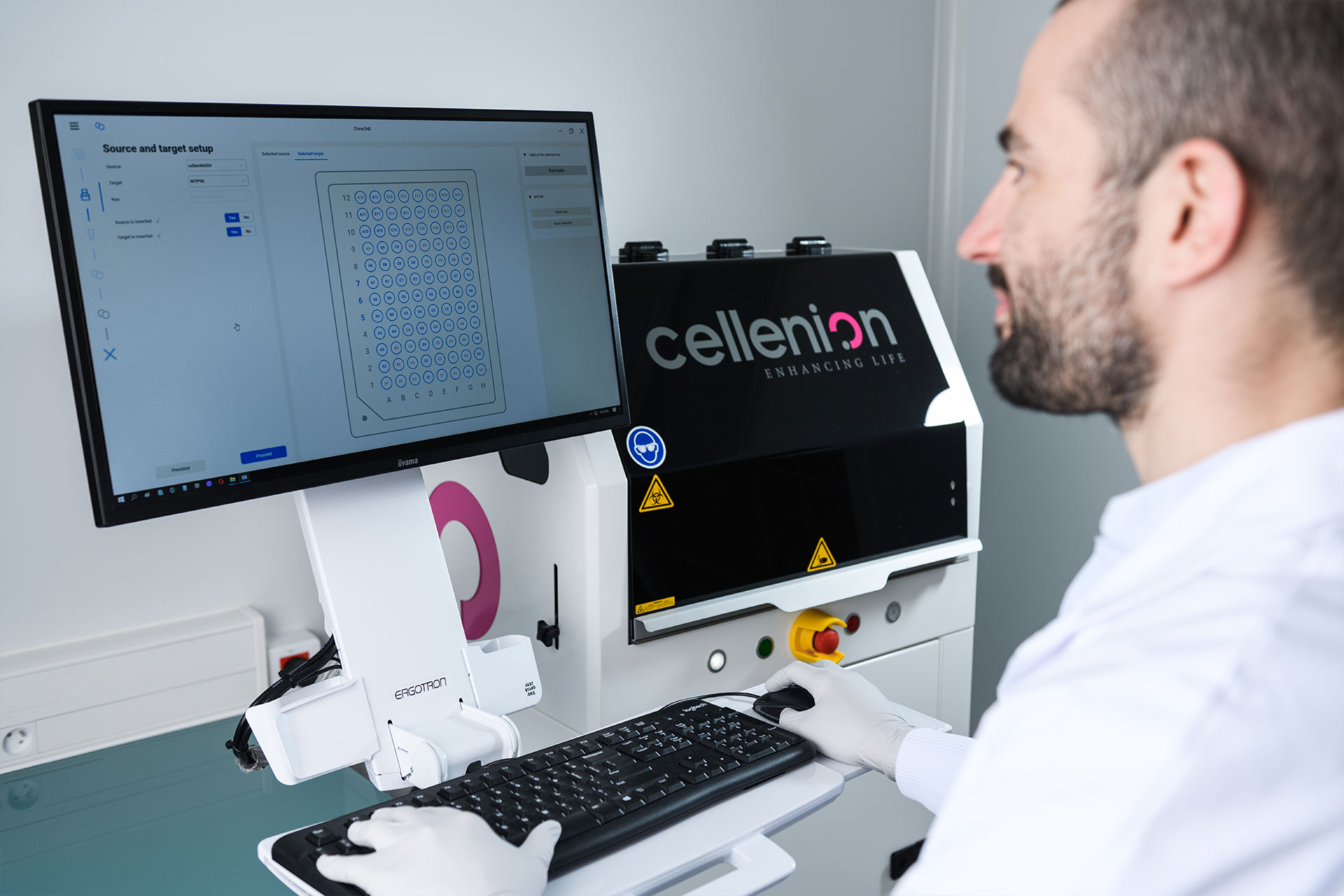

cellenONE® X1

Our standalone cellenONE instrument allowing single cell sorting & isolation based on cell morphology and/or multichannel fluorescence.

cellenONE® X1 BSC

cellenONE instrument integrated under a class II Bio-Safety Cabinet, for applications where full protection of sample, operator, and environment is required

High accuracy single cell isolation and dispensing platform

cellenONE® is a revolutionary platform based on sciDROP PICO precision dispensing technology and coupled with advanced image processing that provides real-time and high accuracy single cell isolation and dispensing.

Using gentle acoustic waves for droplet generation, cellenONE® is the most gentle single cell technology. It preserves outstanding cell viability for all cloning applications and maintains protein expressions for single cell sequencing applications.

Versatile single cell technology for a variety of samples

High-resolution optics allows isolation of any cell type (mammalian cells, bacteria, fungi, archea, plants, etc…) from any sample size.

Working in aspirate/dispense mode allows high recovery of a wide range of samples, from minute cell suspensions containing just a couple of microliters and a few dozen cells to much larger samples containing thousands of cells.

Benefits of cellenONE®

  • High accuracy single cell isolation and dispensing: up to 100% single cells

  • Gentle on cells, ensuring outstanding cell viability

  • Isolate any cell or nuclei: compatible with a wide range of particle sizes (0.5 µm – 80 µm)

  • Ideal for rare cells isolation and minute samples (zero dead volume and high recovery)

  • High-throughput isolation: 96 single cells in < 3 min

  • Image-based cell selection: select only the cells of interest with user-defined sorting parameters (morphology and/or fluorescence markers)

  • Miniaturize library preparation / sample preparation for single cell omics

Benefits of cellenONE

  • High accuracy single cell isolation and dispensing

  • Gentle on cells, ensuring outstanding cell viability

  • Compatible with a wide range of particle sizes

  • Ideal for rare cell samples (zero dead volume and high recovery)

  • High-throughput isolation of hundreds of cells in only a few minutes

Applications

cellenONE® is a low volume, high viability and high accuracy single cell isolation system for both single cell omics and cell line development applications.

In particular, it is the best single cell sample preparation system for a wide range of single cell analysis applications: single cell genomics, transcriptomics, proteomics, multiomics.

Single Cell Omics

Cell Line Development

We have worked successfully with a large variety of cell types

CHO, Hybridoma, HEK293T, HeLa, A549, PC3, H1975, HepaRG

From cell line, fresh frozen (FF) and formalin-fixed paraffin-embedded (FFPE) tissue slices

PMMA microbeads from 2 to 30µm diameters

TOYOPEARL®

PS microbeads

PBMC (including B- and T- cell fractions)

Fibroblasts, keratinocytes, melanocytes, cardiomyocytes, HUVEC

Neural Stem Cells

Application notes

SCoPE2-MS using cellenONE®

Unparalleled clonal outgrowth in 96 384 and 1536 MTP

Scaling Whole Genome Sequencing to > 50,000 Single cells using cellenONE®

Product specifications





cellenONE®  X1

Sorting Technology



Brightfield and/or
Multi-fluorescence cell images
(Blue, Green, Orange and Red)

DAPI (ex.375nm; em. 432nm);

FITC (ex.490nm; em.515nm);

Cy3 (ex.565nm; em.580nm);

Cy5 (ex. 625nm; em.670nm)

Dispensing Technology

sciDROP PICO:  150-600 pL / single drop

Number of Dispensing Channels

Up to 2

Spottable Area (X x Y)

252 x 112 mm

Target Capacity

2 MTPs or 8 standard glass slides

Axis System

X-Y Linear Magnetic Drive, Z Spindle Drive

Axis Precision

< 3 µm

Dimensions with Enclosure (L x W x H)

650 x 700 x 1590 mm

Weight

242 kg

cellenONE® X1

For applications where sorting based on cell morphology and/or multichannel fluorescence is required.

cellenONE® X1 BSC

For applications where full protection of sample, operator, and environment is required
