cellenONE® X1

Gentle & precise image-based single cell sorting

Application

mAb

Stem cells

CRISPR/CAS9

µ-Bio

Cloning

Tailored for

Single cell omics (any omics, omni- omics)

Cell line development (any cell, any standard or custom labware)

Precision low-volume dispensing (pL – nL range) for miniaturized sample preparation

Benefits of cellenONE® X1

Direct visual inspection of the sample
Processing of any sample (from 1 µL and just few cells)
Image-based single cell selection (brightfield and/or 4-channel fluorescence)
Full image record of isolated cells/clones
Best-in-class monoclonal outgrowth rate
Environmental controls (temperature, humidity)
Up to 100% single cells

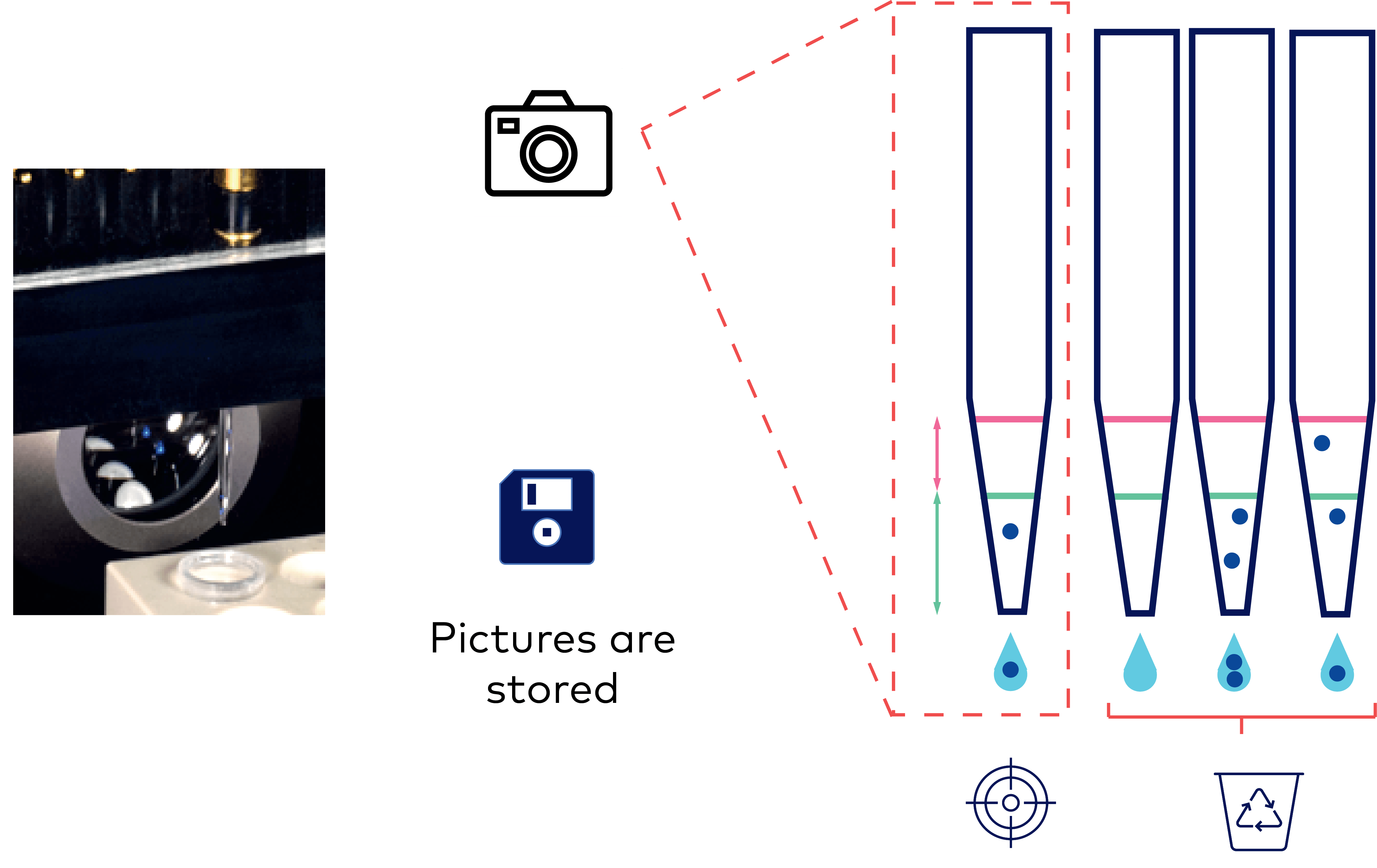

How it works

1. Cell suspension is loaded in a glass capillary

2. Capillary tip is placed in front of an optical system

3. Capillary tip is segmented into two zones

Ejection zone: volume corresponding to the next generated droplet
Sedimentation zone: safety zone considering possible cell sedimentation

4. If the next droplet contains only a single cell that fits user-defined parameters (size, shape, fluorescence markers), it is dispensed into target labware. Otherwise, it is dispensed into a recovery vial allowing reprocessing.

Special Feature

Post-isolation monoclonality verification by the operator

Technical Specifications

cellenONE® X1

Sorting Technology

Brightfield and/or

Multi-fluorescence images (Blue, Green, Orange and Red)

DAPI (ex.375nm; em. 432nm);

FITC (ex.490nm; em.515nm);

Cy3 (ex.565nm; em.580nm);

Cy5 (ex. 625nm; em.670nm)

Dispensing Technology

sciDROP PICO: 150-600 pL / single drop

Number of Dispensing Channels

Up to 2

Spottable Area (X x Y)

252 x 112 mm

Target Capacity

2 MTPs or 8 standard glass slides

Axis System

X-Y Linear Magnetic Drive, Z Spindle Drive

Axis Precision

< 3 µm

Dimensions with Enclosure (L x W x H)

650 x 700 x 1590 mm

Weight

242 kg

Discover other products in the cellenONE® line

Cellenone® Ht

For full automation of single cell workflows

Cellenone® X1 Bsc

For single cell workflows requiring full protection of sample, operator, and environment
